Converters

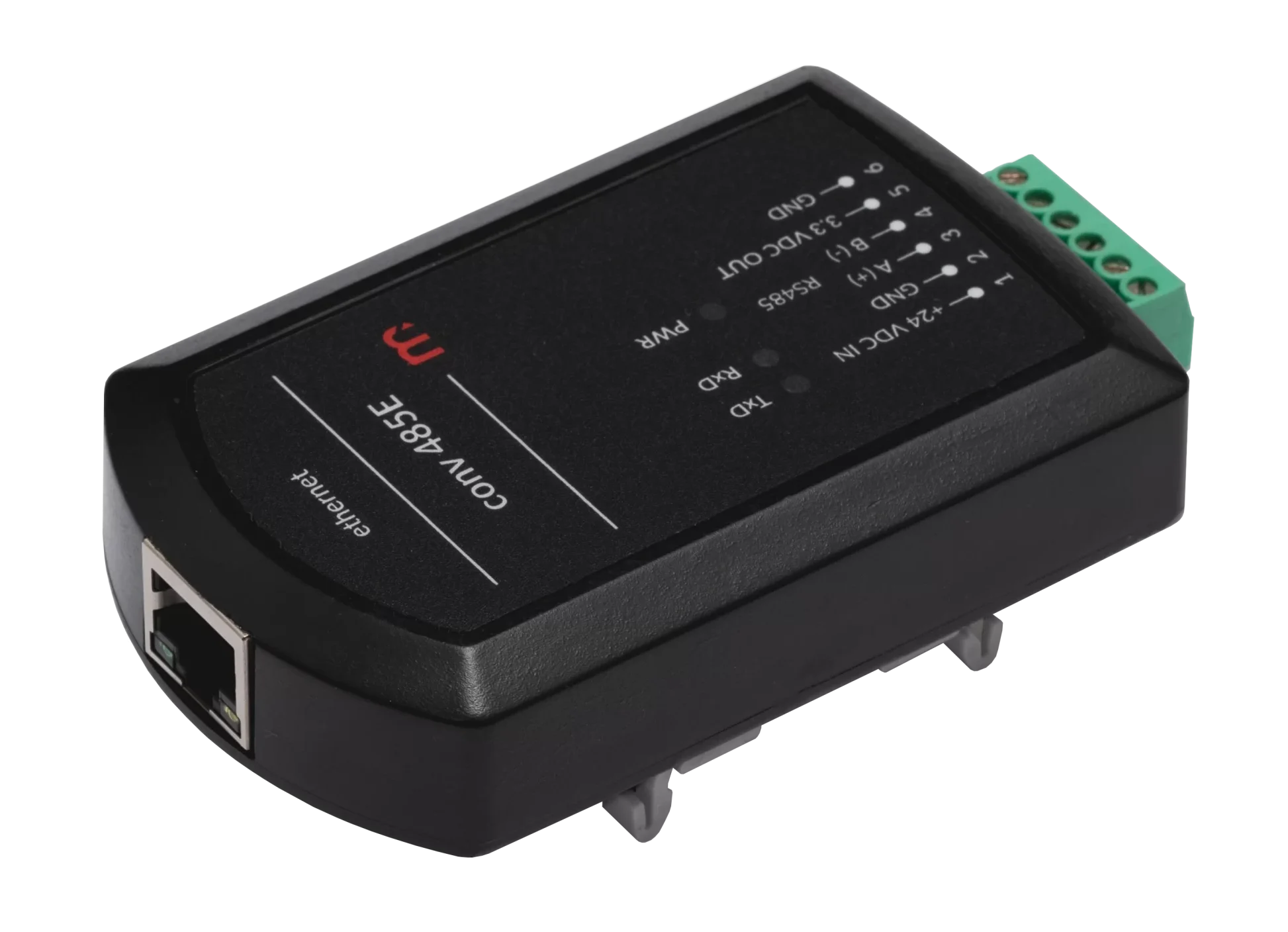

CONV485E

Converter allows to connect devices with RS-485 port to industrial or LAN network. On RS-485 side may be connected up to 32 devices and on Ethernet port side converter can serve up to 6 clients.

Shipping the same or next working day.

Converter RS-485 ↔ Ethernet TCP/IP

• Enables data exchange between devices with RS-485 ports and devices operating in computer LAN networks or industrial Ethernet networks
• 10BaseT ETHERNET port
• RS-485 port (2400bps to 115.2kbps)
• 2 modes of operation: Client and Server
• 2 protocols: “Transparent” and Modbus TCP↔RTU
• Conversion of Modbus TCP to Modbus RTU
• Support of up to 6 clients
• 5 LEDs for converter operation
• Simple configuration through server www
• Can be mounted on TS-35 rail

CLIENT MODE

The converter enables data exchange between master systems operating in RS-485 networks and devices equipped with an Ethernet port.

SERVER MODE

The converter enables data exchange between master systems operating in LAN networks with TCP/IP protocol and devices equipped with a RS-485 serial port.

TRANSPARENT PROTOCOL

The converter transmits the received string of characters between a LAN network and an RS-485 network.

MODBUS TCP ↔ RTU PROTOCOL

The converter receives data from a Modbus TCP protocol device, converts the frame to Modbus RTU protocol and sends the data to and from an RS-485 network operating in this standard.



This product is CE marked.
Declarations of Conformity are available on request.

ETHERNET INTERFACE
Interface 10BaseT Ethernet
Supported protocols TCP, ICMP (ping), DHCP server, http server
Data buffer 300 B
Number of simultaneous open connections up to 6

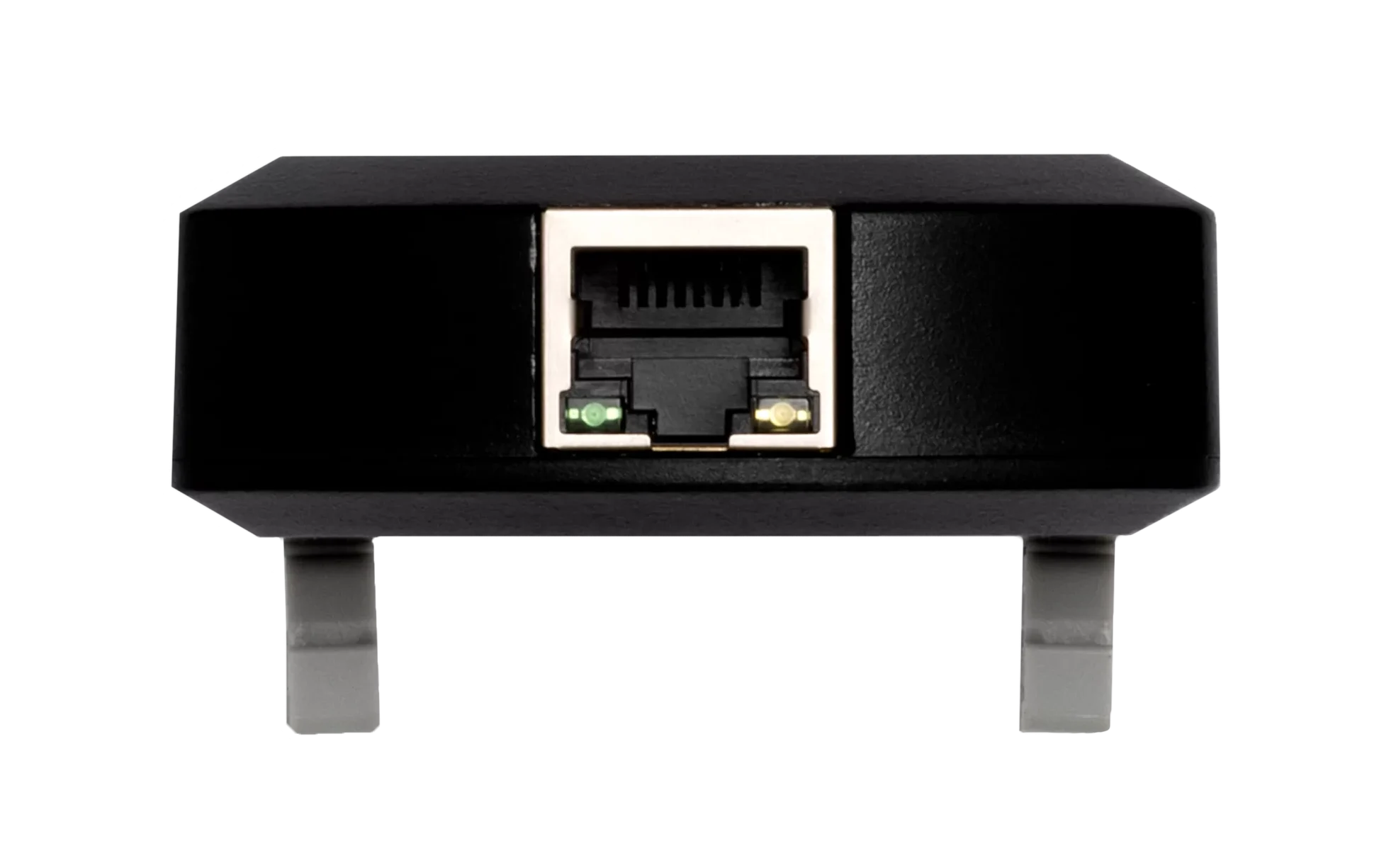

Socket RJ45
LEDs 2, internal in RJ45 socket
RS-485 SERIAL INTERFACE
Baud rate 1.2, 2.4, 4.8, 9.6 ,19.2, 38.4, 57.6, 115.2 kbps
Data frame 1 start bit, 8 data b., 1 stop b. (1 or 2 stop b. for None)
Parity control Even, Odd, None1, None2
Data buffer 300 B

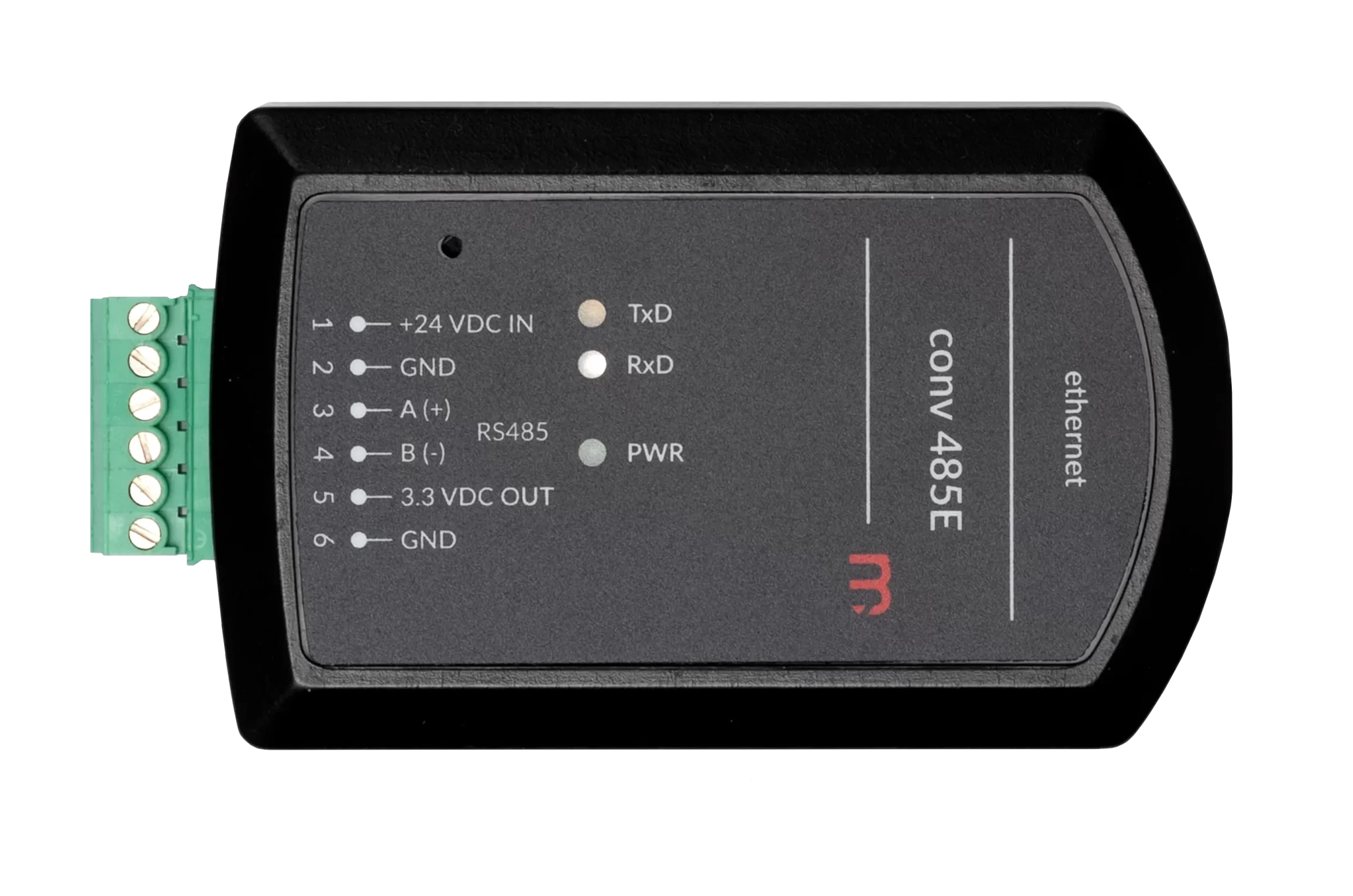

Signals on terminal A(+), B(-), GND
Maximum load 32 receivers / transmitters

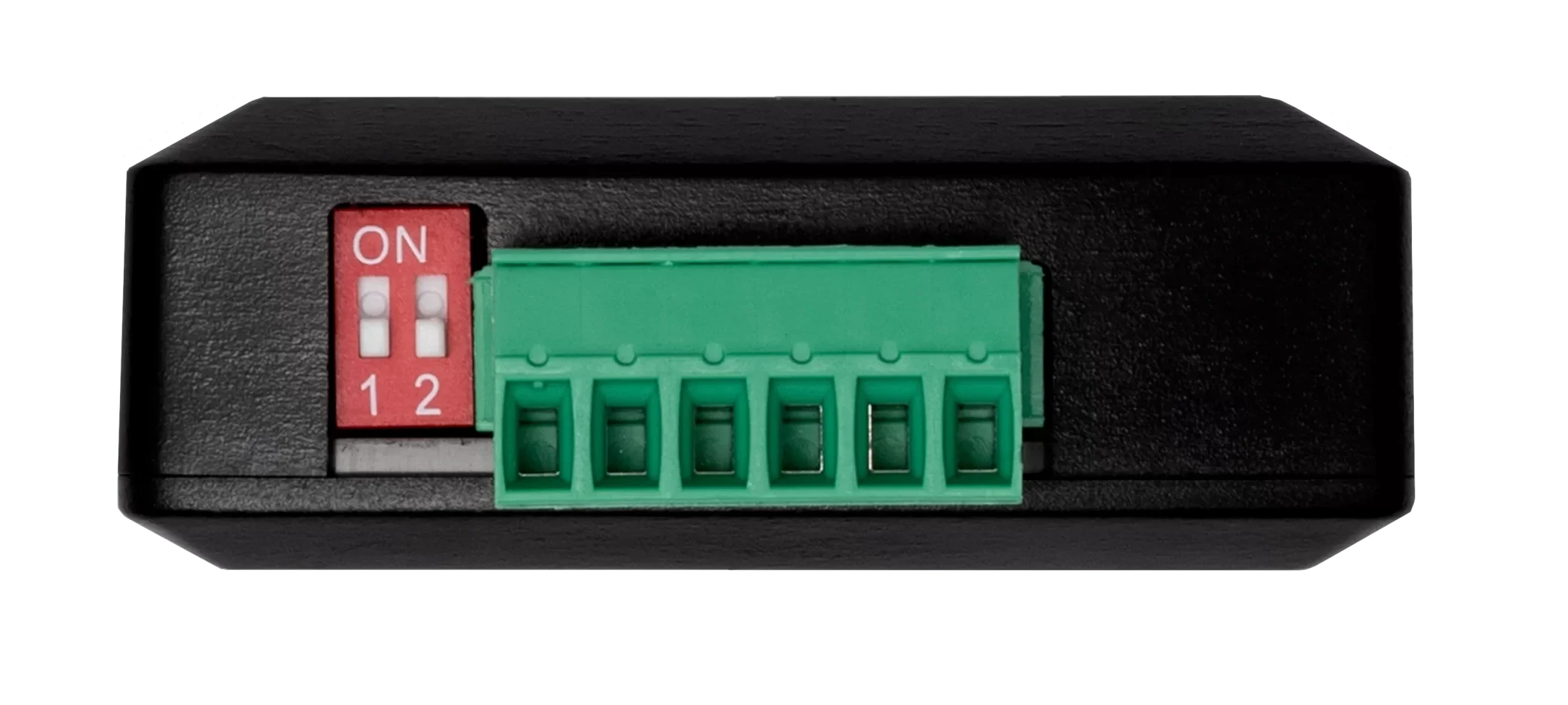

Line terminator internal, switched with DIP switch
Minimum impedance for data transmission line 54 W
Maximum line length 1200 m
Maximum voltage on terminals A(+) and B(-) -7 V .. +12 V
Minimal transmitter output signal 1.5 V (at RL= 54 W)
Minimal receiver sensitivity 200 mV / RIN= 12 kW
Short-circuit / thermal protection Yes/yes
LEDs 2, TxD (yellow colour) and RxD (blue colour) signalization
POWER SUPPLY
Supply voltage 24 VAC (+5% / -10%) / 1 VA

24 VDC (18 .. 36 VDC) / 0.9 W

LEDs 1, presence of power supply, green colour
ENVIRONMENTAL CONDITIONS
Work temperature -20 .. +60 °C
Storage temperature -30 .. +70 °C
Humidity 5 .. 95% (without condensation)
MECHANICAL DIMENSIONS – HOUSING
Dimensions (length x width x height) 93 mm x 57 mm x 21 mm (without clip for TS-35 rail)
Protection class IP30
Weight ca. 0.06 kg


Descritpion

Converter RS-485 ↔ Ethernet TCP/IP

• Enables data exchange between devices with RS-485 ports and devices operating in computer LAN networks or industrial Ethernet networks
• 10BaseT ETHERNET port
• RS-485 port (2400bps to 115.2kbps)
• 2 modes of operation: Client and Server
• 2 protocols: “Transparent” and Modbus TCP↔RTU
• Conversion of Modbus TCP to Modbus RTU
• Support of up to 6 clients
• 5 LEDs for converter operation
• Simple configuration through server www
• Can be mounted on TS-35 rail

CLIENT MODE

The converter enables data exchange between master systems operating in RS-485 networks and devices equipped with an Ethernet port.

SERVER MODE

The converter enables data exchange between master systems operating in LAN networks with TCP/IP protocol and devices equipped with a RS-485 serial port.

TRANSPARENT PROTOCOL

The converter transmits the received string of characters between a LAN network and an RS-485 network.

MODBUS TCP ↔ RTU PROTOCOL

The converter receives data from a Modbus TCP protocol device, converts the frame to Modbus RTU protocol and sends the data to and from an RS-485 network operating in this standard.



This product is CE marked.
Declarations of Conformity are available on request.

Technical data
ETHERNET INTERFACE
Interface 10BaseT Ethernet
Supported protocols TCP, ICMP (ping), DHCP server, http server
Data buffer 300 B
Number of simultaneous open connections up to 6
Socket RJ45
LEDs 2, internal in RJ45 socket
RS-485 SERIAL INTERFACE
Baud rate 1.2, 2.4, 4.8, 9.6 ,19.2, 38.4, 57.6, 115.2 kbps
Data frame 1 start bit, 8 data b., 1 stop b. (1 or 2 stop b. for None)
Parity control Even, Odd, None1, None2
Data buffer 300 B
Signals on terminal A(+), B(-), GND
Maximum load 32 receivers / transmitters
Line terminator internal, switched with DIP switch
Minimum impedance for data transmission line 54 W
Maximum line length 1200 m
Maximum voltage on terminals A(+) and B(-) -7 V .. +12 V
Minimal transmitter output signal 1.5 V (at RL= 54 W)
Minimal receiver sensitivity 200 mV / RIN= 12 kW
Short-circuit / thermal protection Yes/yes
LEDs 2, TxD (yellow colour) and RxD (blue colour) signalization
POWER SUPPLY
Supply voltage 24 VAC (+5% / -10%) / 1 VA

24 VDC (18 .. 36 VDC) / 0.9 W

LEDs 1, presence of power supply, green colour
ENVIRONMENTAL CONDITIONS
Work temperature -20 .. +60 °C
Storage temperature -30 .. +70 °C
Humidity 5 .. 95% (without condensation)
MECHANICAL DIMENSIONS – HOUSING
Dimensions (length x width x height) 93 mm x 57 mm x 21 mm (without clip for TS-35 rail)
Protection class IP30
Weight ca. 0.06 kg
